Description of 6000-8000BPH SUS304 frame OPP hot melt glue bottle labeling machine
Working principle and structural features of 6000-8000BPH OPP hot
melt glue bottle labeling machine
Put different packaging objects into the labeling machine conveyor
belt, the conveyor belt drives the bottles into the bottle
separation area, and the conveyor mechanism continues to move.
After the label position is detected by the photoelectric, the
label is continuously clutched and separated through the clutch,
and the label is removed by the rolling mechanism. After being
pasted on the bottle, the labelled objects will be brought into the
next process or container by the conveyor belt of the labeling
machine.
Characters of 6000-8000BPH OPP hot melt glue bottle labeling
machine:
1, PLC control system, full-automatic working.
2, Made of stainless steel SUS#304 and imported T6 aluminum alloy
after being anode hardened, Side wheels-attaching mechanical sets.
3, Main engine is controlled by three-phase converter motor, speed
adjustable.
4, Horizontal adjustment and Vertical adjustment are automatically
realized by the main engine of the machine(adjustment for label
position) The adjusted height is based on the label suction hub.
Always keep the label completely covering the label suction hub.
5, Include such mechanisms as label-providing, belt-conveying,
label-cutting, wheels-attaching, vacuum-adsorbing, glue spraying,
label application.
6, Vacuum label disk for label-pasting and label-adsorbing and
vacuum manifold at the lower part of drum and cutter, made of heat
& wear resistant material can be prevent from high heat;
7, vacuum drum made of high rigid material to reduce friction and
static.
8, Easy operation to use handle to adjust label cutting knife.
Rapid changeovers: modular design and quick release change parts
have changeovers fast and easy within ten minutes.
9, Automatic label length controller to adjust position of I-MARK.
10, Alarm for missing label or gap and Alarm for label running-out.

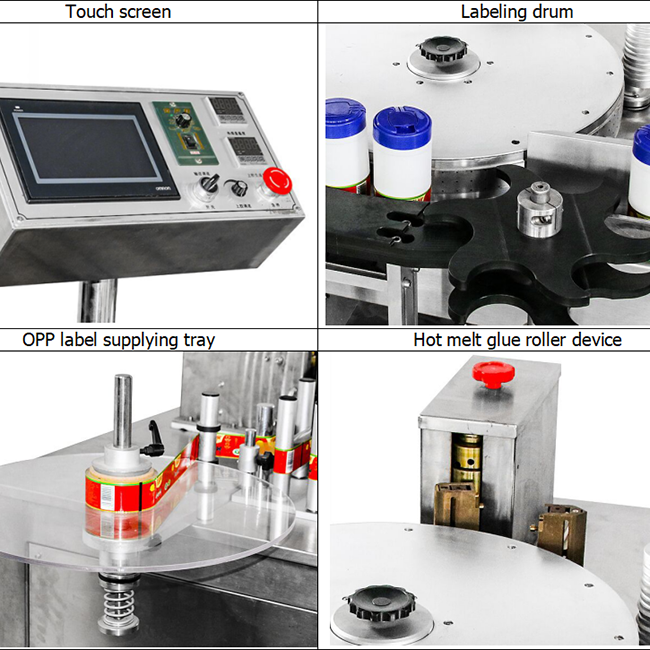

Components:
| Description | Qty | MODEL |
| Label sensor | 3suit | OMRON |
| Movement controller | 1suit | OMRON |
| Power switch | 1suit | TAIWAN |
| Touch screen | 1suit | OMRON |
| Servo | 2suit | TAIWAN |
| Sense Amplifier | 1suit | OMRON |
| Solid relay | 2suit | SCHNIDER |
Parameters of 6000-8000BPH OPP hot melt glue bottle labeling
machine:
Labeling precision: +/-2mm
Speed: 6000-8000BPH (500ML)
Power source: 50/60HZ, 3PHASES, 380V AC, 240V DC
Label size range: L160-360mm, W 35-120mm
Sol speed: 0.1KG/h
Roller capacity: 5KG
Inner diameter of label roll: 76mm
outer diameter of label roll: 450mm
Bottle diameter: 50-120mm
Total power: 4.3kw
Size: 2000*1350*1500mm Weight:400kg
Air source: 4-6kg/cm2
