    PLC Control Double Head Neck Body Sleeve Applicator Bottle Labeling Machine

    Ask Lasest Price
    Brand Name : BOTTLING MACHINERY
    Model Number : TB-150-2 / TB-250-2
    Certification : CE/ISO9001-2008
    Price : 15000-16000USD
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 5sets per month
    Delivery Time : 25-30 working days
    • Product Details
    • Company Profile

    PLC Control Double Head Neck Body Sleeve Applicator Bottle Labeling Machine

    Description of PLC control Double head neck body sleeve applicator bottle labeling machine

    Features of Double head sleeve shrink labeling machine for both body labels or 1 body label 1 neck label:
    1, It can be fully connected to the production line for operation, or it can be operated on a stand-alone basis

    2, Adopting double trays for feeding, which can save time for changing materials and ensure smooth production

    3, Adjustable feeding high-speed electric eye, accurately lock the label

    4, Double positioning center guide post, stable label delivery, can quickly realize the replacement of different products

    5, Synchronous bottle divider design, bottle conveying is not easy to shake

    6, The original adjustable cutter head makes the cutting mark smoother, which greatly reduces the imagination of defects and makes it easier to replace the blade

    7, Conveyor belt, bottle-separating screw and bottle-belt can be adjusted synchronously to ensure stable and high speed label

    8, Advanced control system, color touch screen design with auxiliary buttons, more in line with humanity

    9, High-standard electrical configuration, the matching of the feeding cutter is seamless, and the label feeding is soft and smooth.

    10, All use international well-known electrical brands, high stability and trustworthy

    11, Using Swiss imported wind to preheat and shrink, position the label to be shrink in advance


    Optional:

    A Floor-standing material rack B Material storage rack C Rotating material rack D Dotted line device


    Equipment list of Double head sleeve shrink labeling machine for both body labels or 1 body label 1 neck label:

    ItemsDescriptionModelSize(mm)Qty
    Double head 150-300BPM sleeve labeling machine set
    1.1Sleeve applicatorTB-150-24000*850*21001set
    1.2Sleeve shrink tunnelSB-15001500*700*20001set

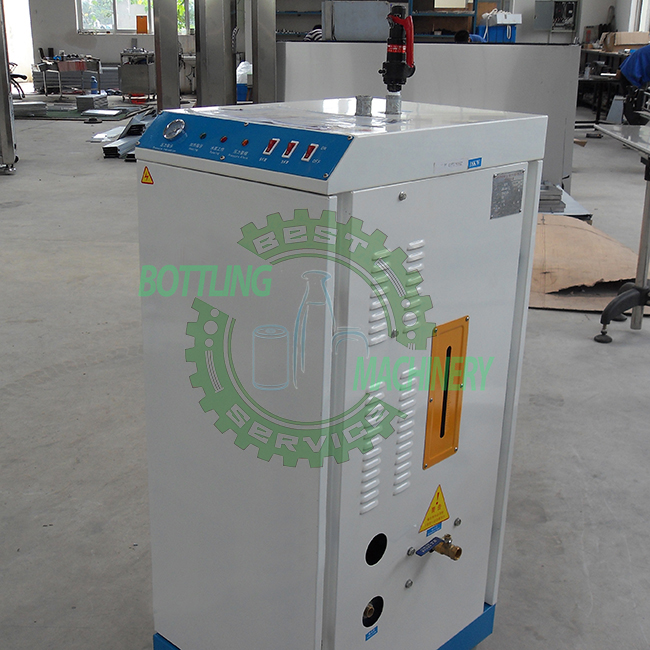

    1.3Steam generator18KW760*570*10301set
    1.4Connection conveyor system//4m
    1.5Spare parts//1suit
    Double head 250-500BPM sleeve labeling machine set
    2.1Sleeve applicatorTB-250-24000*850*21001set
    2.2Sleeve shrink tunnelSB-20002000*700*20001set
    2.3Steam generator24KW730*550*11301set
    2.4Connection conveyor system//5m
    2.5Spare parts//1suit

    Parameters of Double head sleeve shrink labeling machine for both body labels or 1 body label 1 neck label:

    No.ItemTechnical data
    1Import Power6.0KW
    2Import Voltage∮3, 380/220 VAC
    3Capacity(production speed)

    TB-150-2

    300 bottles per min

    (single label)

    TB-250-2

    500 bottles per min

    (single label)

    4Dimension of Host Machine (mm)L4000 × W850 × H2200
    5Applicable Diameter Container (mm)φ28 mm ~ φ120 mm
    6Applicable Label Length (mm)30~250 mm
    7Applicable Thickness Label (mm)0.03~0.13 mm
    8Applicable Inner Diameter of Paper Tube5''~10''

    Configuration table of machine parts

    1. Bottle separating mechanism1set7. Label carrier drive mechanism2set
    2. Bottle positioning mechanism1set8. Cutter mechanism2set
    3. Single material putting place2set9. Synchronous label brush-off mechanism2set
    4. Fiber-optical electric eye controlling2set10. Automatic platform elevating mechanism2set
    5. Center guide pin2set

    11. Man-machine interface of operation control panel


    1set
    6. Shrink oven1set12. Hairbrush2set

    Set up of Double head sleeve shrink labeling machine for both body labels or 1 body label 1 neck label

    Electrical apparatusNameBrandModelQty
    PLCMitsubishi JapanFX3SA-30MT1
    Touch screenWEINVIEW-TaiwanTK6071IQ1
    Photo-electricity SensorAutonice-KoreaPR12-4DN1
    High-speed Optical Fiber SensorSUNX JapanFX-3011
    Photo-electricity SensorSUNX JapanCX-4421
    Electricity SensorSUNX JapanPM-L441
    Label In-feeding Servo MotorPanasonicMHMF082L1U2M2
    Label In-feeding Servo DrivePanasonic

    TB-100

    MBDLN25SG(400W)

    2

    TB-250

    MBDLN25SG(750W)

    2
    Cutting Head Servo MotorPanasonicMHMF042L1U2M2
    Cutting Head Servo DrivePanasonicMBDLN25SG(400W)1
    Bottle Discharge Variable-frequency DriveSHIHLIN-TaiwanSC3-21-0.75K1
    Bottle Conveyor Variable-frequency DriveSHIHLIN-TaiwanSC3-21-0.75K1
    Label Feeder Variable-frequency DriveSHIHLIN-TaiwanSC3-21-0.75K1
    AC cont-actorSchneider FrenchLC1-D0610M5C4
    Circuit-breakerSchneider FrenchD10 3P1
