Industrial / Municipal Water Supply 20 Ton Per Hour Water Purifying Machine

Ask Lasest Price
Brand Name :	BOTTLING MACHINERY
Model Number :	RO-20ton
Certification :	CE/ISO9001-2008
Price :	31000-34000USD
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	3sets per month
Delivery Time :	25-30 working days

Add to Cart

Product Details
Company Profile

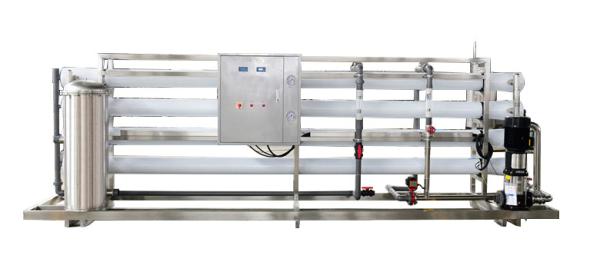

Industrial / Municipal Water Supply 20 Ton Per Hour Water Purifying Machine

Description of Industrial / Municipal water supply 20ton per hour water purifying machine

20000LPH RO water treatment machine function:

Automatic cleaning and manual cleaning of reverse osmosis membrane
The high water level of pure water stops automatically and the low water level starts automatically
Waterless protection of multiphase pump
No electricity, poor power supply, large current short circuit, leakage protection

Ro system technical parameters(source water TDS ≤ 2000mg/L(ppm))
Item Name	Function
Raw Water Pump	Provide pressure to quartz sand filter/active carbon filter/softener
Quartz Sand Filter	Get rid of turbidity, suspended matter, organic matter, colloid, etc.
Activated Carbon Filter	Remove the color, free chloride, organic matter, harmful matter, absorb odor, smell, etc... to make clear water
Anti-scalant chemical dosing system/Water Softener	Remove Calcium ion(Ca2+) and magnesium ion(Mg2+) to reach the aim of removing hardness from water.
Security filter	Prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
High pressure pump	Provide pressure for Ro membranes
RO vessels &membranes	Remove dissolved ions, organic matter ,bacteria...
Solenoid valves, gauges,switch...	To protect the machine under operation
CIP Washing system(optional)	Membranes maintenance
Electronic control	Water quality detector, AC contactor, Air switch, indicator light, knob switch, electrical miscellaneous pieces...
UV/Ozone(optional)	Remove some bacteria like coliform, pseudomonas aeruginosa.

Equipment list of 20000LPH RO water treatment machine:

Items	Name of machine	Model	Size(mm)	Qty.
1.1	Raw water pump	CDMF32-30	/	1set
1.2	Quartz sand filter	SUS2000	Φ2000*3000	1set
1.3	Active carbon filter	SUS2000	Φ2000*3000	1set
1.4	Cartridge filter	SUS600	Φ600*1800	1set
1.5	RO unit (anti-scale dosing device included)	RO-20000	50006002300	1set
1.6	Connection pipes&valves	SUS304	/	1suit
OPTION
1.7	Sodium ion exchanger	SUS2000	Φ2000*3000	1set
1.8	Sodium ion rebirth device	300L	/	1suit
1.9	Ozone sterilizer	T40G	4002801300	1set
1.10	Injector	48275	/	1set

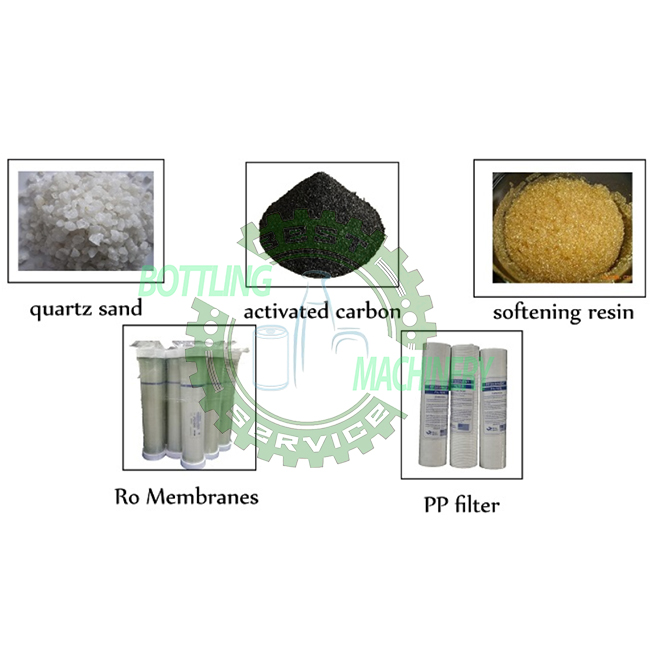

This is the filter filling material, quartz sand, activated carbon, softening resin, RO membrane, PP filter. these parts need change regularly. If you purchase our machine, the filter filling material is included. After a long time, you can get them from us.

Configuration of the RO main part:

ITEM	Unit	RO-20ton	Brand
Flow rate	L/H	≥40000
Recovery rate	%	50-75
Design pressure	MPA	0.8-4.5
Dimensions	MM	50006002300
High pressure pump	SET	CDLF42-50 18.5KW*1	NANFANG
Membrane housing material	PCS	FRP(8040-5)*4	Rework
8040 Membrane	PCS	Polyamide material*20	HYDECANME
Volume of anti-scale dosing device	Litre	PE-300L*1
Water flowmeter for salinity water	PCS	1
Water flowmeter for purified water	PCS	1
Low pressure protector for high pressure pump	PCS	1
High pressure protector for high pressure pump	PCS	1
Pressure gauge for salinity water	PCS	1
Pressure gauge for purified water	PCS	1
Conductivity meter	PCS	1
PLC	PCS	1	Mitsubishi
Program controller (errors alarm)	PCS	1
Air switch	Suit	1	Schneider
Contactor	Suit	1	Schneider
Relay	Suit	1	Schneider

our service:
1. Provide instruction manual

A. Filling of quartz sand filter

B. Activated carbon filter filling

C. Flushing of filter material

D. Normal operation

E. Installation of safety filter

F. Installation method of reverse osmosis membrane

G. RO membrane flushing and adjustment

H. Operation Manual

2. Provide instructional videos

The video in the U disk will be included in the product

3. Online technical support

The engineer will guide you to solve the problem.

4. Provide site installation
